RVDS Vertical Drilling System

The RVDS is specialized on the automated drilling of vertical boreholes ( 8 ½" – 26" diameter). It consists of two modules, each 1.5 m in length. Therefore, it is compatible with every standard Raise Bore unit. The system is integrated in the borehole assembly between drill bit and first stabilizer. During operation a turbine provides the system with self-sustaining energy. Integrated inclinometers constantly measure the deviation of the vertical borehole axis. Corrections will automatically be performed by four hydraulically extendable steering ribs.

Simultaneously, current drilling data is send by the RVDS to the surface equipment via mud pulse technology. For highly explosive areas, the surface equipment is also available in an ATEX certified version.

Downloads
Catalog RVDS EN - PDF

Directional Drilling Tools

MICON-Drilling offers a comprehensive range of high-quality directional drilling equipment. In addition to MWD systems and drilling motors, self-steering tools such as the RVDS, TruTrak, VertiTrak and 3D-Trak (RSS) are available.

Downloads
Catalog Directional Drilling Tools EN - PDF
Catalog MWD EN - PDF

Raise Bore Equipment

MICON-Drilling offers an extensive product line of high quality Raise Bore equipment, including drill rods, stabilizers and subs. We provide custom-made equipment on request. We use only high quality steel, which is produced according to MICON specifications. Our specifications and our quality are the result of long-lasting and innovative cooperations with German universities and steel mills. For decades numerous projects worldwide have proven the longevity of MICON Raise Bore equipment.

Downlaods
Catalog Raise Bore EN - PDF

BHA Equipment

MICON-Drilling supplies a wide range of drilling equipment, including drill rods, wireline coring rods, stabilizer, crossover and hole openers. In addition to all standard sizes, custom-made equipment and special materials, such as non-magnetic drill collars are available.

Mining Bits

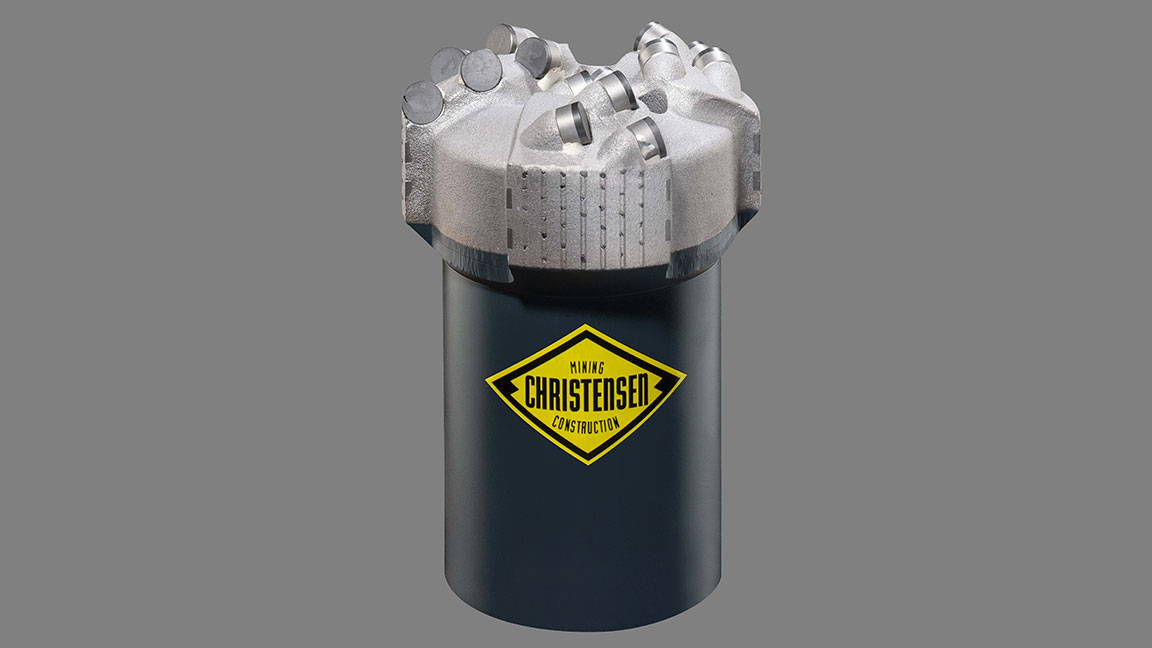

Christensen mining bits are available for all kinds of mining and geotechnical drilling or coring applications. Examples are the raw material exploration or ground reconnaissance. German engineering, the use of high-grade materials and continuous product development
guarantee a maximum rate of penetration and superior wear resistance. Our mining bits are in operation worldwide and have proven on thousands of drill meters under roughest conditions. For special needs we manufacture customized bits according to customer's specifications. Additionally, we offer a repair service for our PDC bits. Please contact us for further details.

Downlaods
Catalog Minig Bits EN - PDF

Oilfield Bits

MICON-Drilling oilfield bits are made for drilling under roughest conditions. The use of high-grade materials, German engineering and continuous product development guarantee a maximum rate of penetration and wear resistance. We supply steel and matrix body drill bits equipped with high quality cutter. The MICON Directional Series (MR) provides outstanding performance for directional drilling applications. For all other purposes our MICON Drilling Series (MD) bits are the tools of choice. The MICON Coring Series (MC) offers reliable and well established tools for your coring project. Beside our established product line ranging from 2" to 17 ½", we also manufacture customized drill bits according to customer‘s specifications. Additionally, we offer a repair and rental service for our PDC drill bits. Please contact us for further details.

Downloads
Catalog Oilfield Bits EN - PDF

Core Barrels

MICON coring systems stand for high quality and guarantee the best possible core recovery. In this field we have decades of experience. Due to the continuous improvement of our systems, you can always rely on their steadiness.

MICON Drilling offers a wide range of heavy-duty core barrel types for the fields of mining, oil and gas, as well as geotechnical engineering. Beside wireline core barrels, we supply double- and single tube core barrels. Optional variants with liner, multi-drill system or core orientation system are available. All wireline core barrels are equipped with the flexible Christensen latching head which assures a secure locking in every situation.

Downloads
Catalog Wireline Core Barrels Premium EN - PDF
Catalog Wireline Core Barrels Spearhead EN - PDF

System	Borehole Diameter*	Core Diameter	Outer Barrel OD	Depth Range**
CA	52,0 mm	27,0 mm	44,5 mm	2.100 m
CB	64,0 mm	36,5 mm	57,2 mm	2.100 m
CN	75,7 mm	47,6 mm	70,0 mm	2.000 m
CH	96,3 mm	63,5 mm	92,1 mm	2.000 m
CP	122,6 mm	85,0 mm	117,5 mm	2.000 m
NXB II	75,7 mm	47,6 mm	73,0 mm	2.100 m
HXB II	92,8 mm	61,2 mm	90,0 mm	2.300 m
CSK 146	146,0 mm	102,0 mm	140,0 mm	2.200 m
CSK 176	176,0 mm	132,0 mm	171,0 mm	1.800 m
SK 4 ¼" B	120,6 mm	69,0 mm	110,0 mm	2.500 m
SK 4 ½" B	123,8 mm	78,0 mm	114,3 mm	2.300 m
SK 5 ¾"	157,0 mm	88,9 mm	146,0 mm	4.500 m
SK 5 ½" B	161,9 mm	101,4 mm	152,4 mm	3.000 m

*Borehole diameter adjustable with core bit.
**Values calculated for original Christensen drill rods with safety factor 2.

Borehole Survey

The EMS (Electronic Multishot System) is specialized on the survey of drilled boreholes. The system is inserted into the borehole via a winch and automatically records up to 8142 measuring points, providing azimuth and inclination data. Back at the surface the collected data can be easily read out via USB port on a standard notebook.

Downloads
Catalog EMS EN - PDF

Service Equipment

MICON-Drilling offers an extensive range of service equipment.

Available equipment:

Directional Drilling Systems – TruTrak, 3D Trak, MWD
Vertical Drilling Systems – RVDS, VertiTrak
Raise Bore Equipment
PDC Drill Bits
P250 Double Tube Core Barrels
Stabilizers
Reamers
EMS Borehole Survey Instruments
Single Shot Borehole Survey Instruments
Pumps
Drill Mud Treatment Facilities
Cable Winches
Workshop Containers
(NSG) North seeking Gyro
